| Code # | EKI-TWB-1001 | EKI-TWB-1002 | EKI-TWB-1003 | EKI-TWB-1004 | |
|---|---|---|---|---|---|

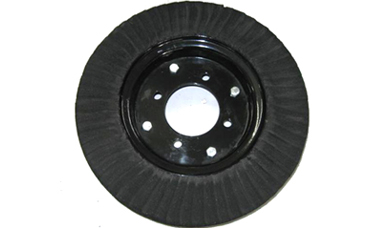

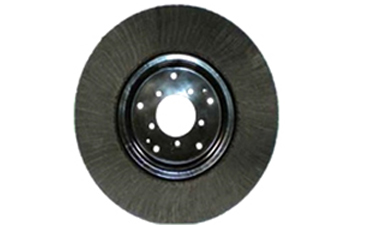

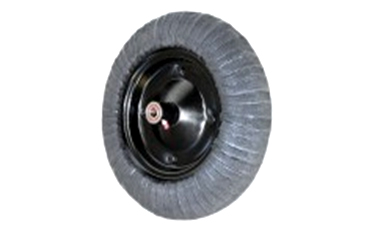

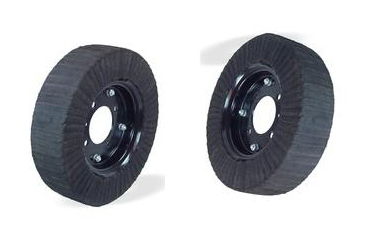

| Item | LAMINATED TIRE 4X8X15 | LAMINATED TIRE 5X8X15 | LAMINATED TIRE 6X9X21 | LAMINATED TIRE 6X9X21 | |
| Tire Outer Diameter | 14.75"/375mm | 14.75"/375mm | 20.75"/527mm | 20.75"/527mm | |
| Tire Width | 3.75"/95mm | 4.75"/121mm | 5.25"/133mm | 5.25"/133mm | |
| Center Hub Hole Diameter | 3.55"/90mm | 3.55"/90mm | 3.55"/90mm | 3.55"/90mm | |
| Hub Bolt Patten | 4 Bolts | 4 Bolts | 4 Bolts | 5 Bolts | |
| Rim Tyre | CRCA Sheet | CRCA Sheet | CRCA Sheet | CRCA Sheet | |
| Weight | 22 LBS/10 KGS | 29 LBS/13 KGS | 67 LBS/30.5 KGS | 67 LBS/30.5 KGS | |
| Weight | Big Bee Bush Hog, King Kutter, Land Pride, Woods and others rotary cutters | ||||
| Fitting in Finish Mowers :- Black /white or any other color required by the customer. | |||||

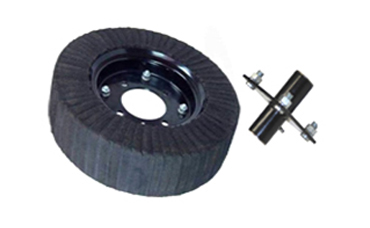

| Item # | EKI-TWF-3009 | EKI-TWF-3010 | EKI-TWF-3011 | EKI-TWF-3012 | |
|---|---|---|---|---|---|
| Plate Width | 3"/76mm | 3"/76mm | 3"/76mm | 3"/76mm | |
| Plate Thickness | 0.50"/12.7mm | 0.50"/12.7mm | 0.50"/12.7mm | 0.50"/12.7mm | |
| Yoke Dia | 1.50"/38mm | 1.50"/38mm | 1.25"/32mm | 1.25"/32mm | |
| Fork Inner Dia Width | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm | |
| Free Play | 6.50"/165mm | 6.50"/165mm | 5.50"/140mm | 5.50"/140mm | |
| Overall Length | 7.50"/191mm | 7.50"/191mm | 6.25"/159mm | 6.25"/159mm | |
| Bolt Axle Hole | 1"/ 25.4mm | 0.75"/ 19mm | 1"/25.4mm | 0.75"/ 19mm | |
| Weight | 15 LBS/6.80 KGS | 15 LBS/6.80 KGS | 14 LBS/6.5 KGS | 14 LBS/6.5KGS | |
| Powder Coating : Black /white or any other color required by the customer. | |||||

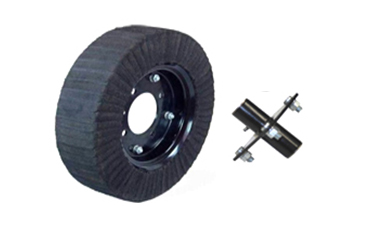

| Item # | EKI-TWHF-3013 | EKI-TWHF-3014 | EKI-TWHF-3015 | EKI-TWHF-3016 | |
|---|---|---|---|---|---|
| Plate Width | 3"/75mm | 3"/75mm | 3"/75mm | 3"/75mm | |
| Plate Thickness | 5/8"/16mm | 5/8"/16mm | 5/8"/16mm | 5/8"/16mm | |
| Yoke Dia | 1.5"/38mm | 1.5"/38mm | 1.25"/32mm | 1.25"/32mm | |
| Fork Inner Dia Width | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm | |
| Free Play | 6.50"/165mm | 6.50"/165mm | 6.50"/165mm | 6.50"/165mm | |
| Overall Length | 7.50"/191mm | 7.50"/191mm | 7.50"/191mm | 7.50"/191mm | |
| Bolt Axle Hole | 1"/ 25.4mm | 0.75"/ 19mm | 1"/25.4mm | 0.75"/ 19mm | |
| Weight | 24 LBS/11 KGS | 24 LBS/11 KGS | 24 LBS/11 KGS | 24 LBS/11 KGS | |
| Powder Coating : Black /white or any other color required by the customer. | |||||

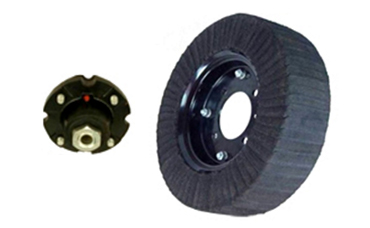

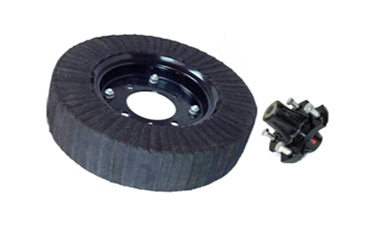

| Description | EKI-FH-4001 | EKI-FH-4002 | Description | EKI-CH-4003 | EKI-CH-4004 |
|---|---|---|---|---|---|
| Plate Size | 5"x5"x0.24" | 5"x5"x0.24" | Hub Length | 5.12"/130mm | 5.12"/130mm |
| Pipe Size (OD,ID,Length) | 1.65"x1.38"x5" | 1.65"x1.38"x5" | Bushing | 1"/25mm | 0.75"/19mm |
| Bushing | 1"/25mm | 0.75"/19mm | Type | Cast Iron | Cast Iron |
| Type | Steel Fabricated | Steel Fabricated | Hub 4 Bolts | 0.50"x1.25" UNF | 0.50"x1.25" UNF |
| Hub 4 Bolts | 0.50"x1" UNF | 0.50"x1" UNF | Grease Nipple | Streight | Streight |
| Grease Nipple | L-Type | L-Type | Powder Coating | Black/White | or any other color required by the customer. |
| Powder Coating | Black/White | or any other color required by the customer. | Weight | 6 LBS/2.75 KGS | 6 LBS/2.75 KGS |
| Weight | 2.75 LBS/1.25 KGS | 2.75 LBS/1.25 KGS |

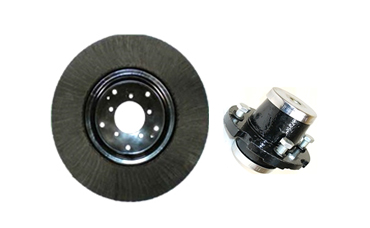

| Description | EKI-CHTD-4007 | EKI-CHTD-4008 | EKI-CHTD-4009 | EKI-CHTD-4010 |
|---|---|---|---|---|
| Hub Length | 5.25"/133mm | 5.25"/133mm | 5.25"/133mm | 5.25"/133mm |
| Taper Bearing and Racer | 1"/25mm | 0.75"/19mm | 1"/25mm | 0.75"/19mm |
| Oil Seal | 45x62x10mm | 45x62x10mm | 45x62x10mm | 45x62x10mm |
| Type | Cast Iron | Cast Iron | Cast Iron | Cast Iron |
| Hub 4 Bolts | 0.50"x1.25" UNF | 0.50"x1.25" UNF | 0.50"x1.25" UNF | 0.50"x1.25" UNF |
| Powder Coating/Paint | Black /white or any other color required by the customer. | |||
